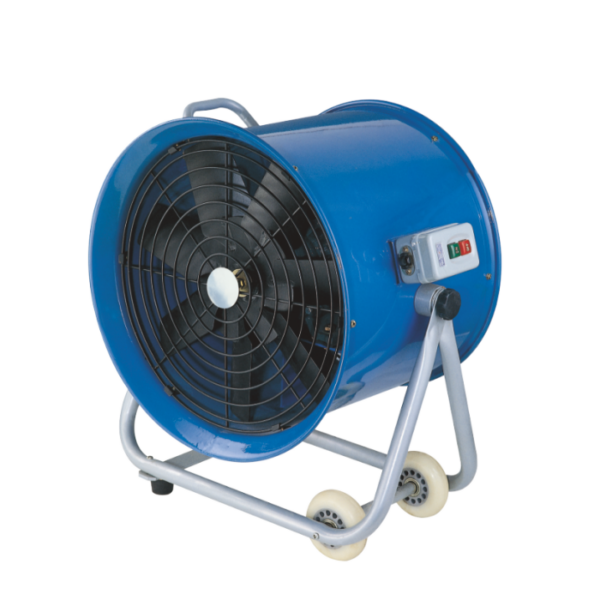

Portable Air Blower – CAD6-F1 Series
CAD6 Series is designed for extracting indoor / underground air to outdoor / ground surface or to supply fresh air from open air to indoor / underground environment.
DESCRIPTION
CAD6 Series is designed for extracting indoor / underground air to outdoor / ground surface or to supply fresh air from open air to indoor / underground environment.
– The fans are recommended for working places in electric welding, soldering, tunnel work, basement, smoking room, chemical laboratory, vessel, basement car park, etc.
– Suitable for inflatable toy, inflatable promotional material, outdoor inflatable constructions, etc.
– Easy to move with castor and wheels
– Rolled sheet steel casing with epoxy paint finish for durable application.
– Die-cast aluminum impellers with stable and durable application
– High performance asynchronous induction type motor with built-in thermal cut-out protection.
– Optional flexible duct with extended length of 10m, 15m by connecting 5m/unit ducts.
– Safety fan grilles.
SPECIFICATION
| Model No. | Dimension (mm) | Blade Size (mm) | Voltage | Input Power (W) | Speed (R.P.M) | Air Volume (m³/min) | Air Pressure (Pa) |
|---|---|---|---|---|---|---|---|
| CAD6-40F1 | 500 x 370 x 600 | 390 | 220V~50Hz | 1500 | 2900 | 135 | 400 |
| CAD6-50F1 | 600 x 400 x 710 | 490 | 220V~50Hz | 1500 | 2900 | 150 | 430 |
| CAD6-60F1 | 730 x 510 x 820 | 590 | 220V~50Hz | 2200 | 1400 | 290 | 280 |
