Description

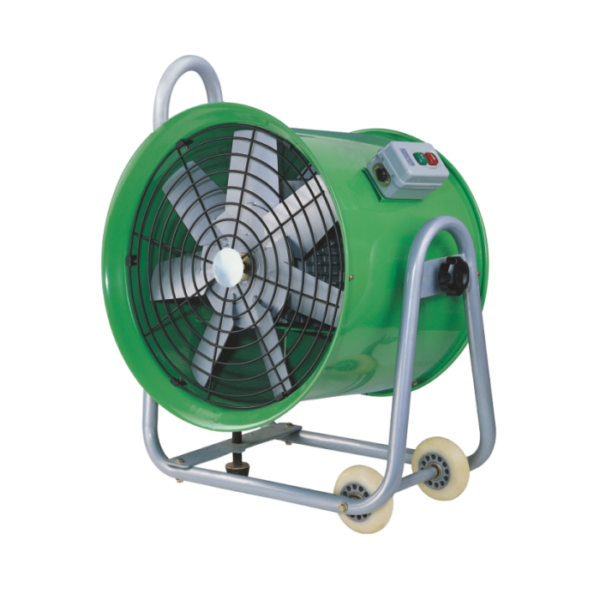

CAD6 Series is designed for extracting indoor / underground air to outdoor / ground surface or to supply fresh air from open air to indoor / underground environment.
- The fans are recommended for working places in electric welding, soldering, tunnel work, basement, smoking room, chemical laboratory, vessel, basement car park, etc.
- Suitable for inflatable toy, inflatable promotional material, outdoor inflatable constructions, etc.
- Easy to move with castor and wheels
- Rolled sheet steel casing with epoxy paint finish for durable application.
- Die-cast aluminum impellers with stable and durable application
- High performance asynchronous induction type motor with built-in thermal cut-out protection.
- Optional flexible duct with extended length of 10m, 15m by connecting 5m/unit ducts.
- Safety fan grilles.
Specification
| Model No. | Dimension (mm) | Blade Size (mm) | Voltage | Input Power (W) | Speed (R.P.M) | Air Volume (m³/min) | Air Pressure (Pa) |
|---|---|---|---|---|---|---|---|
| CAD6-40F2 | 510 x 370 x 610 | 390 | 220V~50Hz | 1500 | 2900 | 135 | 400 |
| CAD6-50F2 | 600 x 400 x 720 | 490 | 220V~50Hz | 1500 | 2900 | 150 | 430 |
| CAD6-60F2 | 730 x 510 x 830 | 590 | 220V~50Hz | 2200 | 1400 | 290 | 280 |
