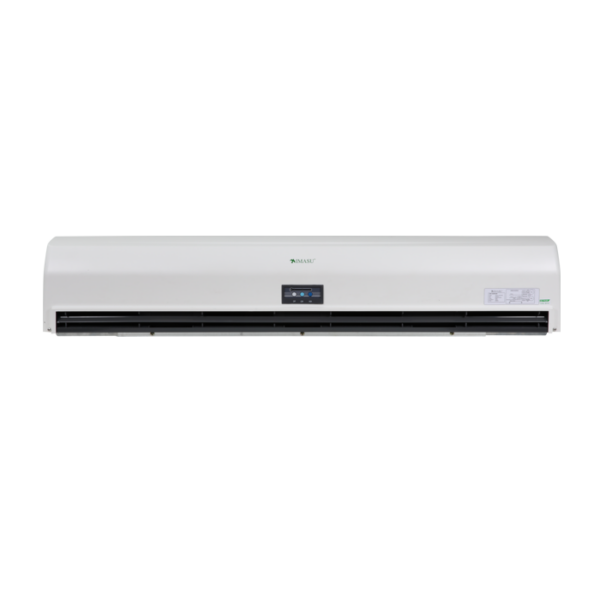

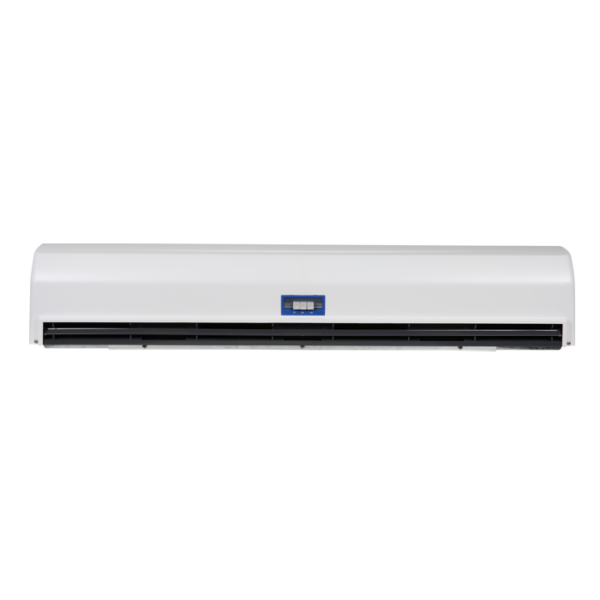

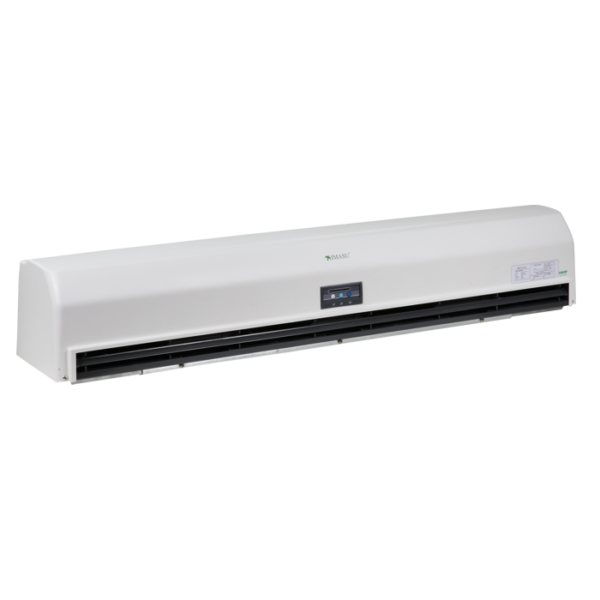

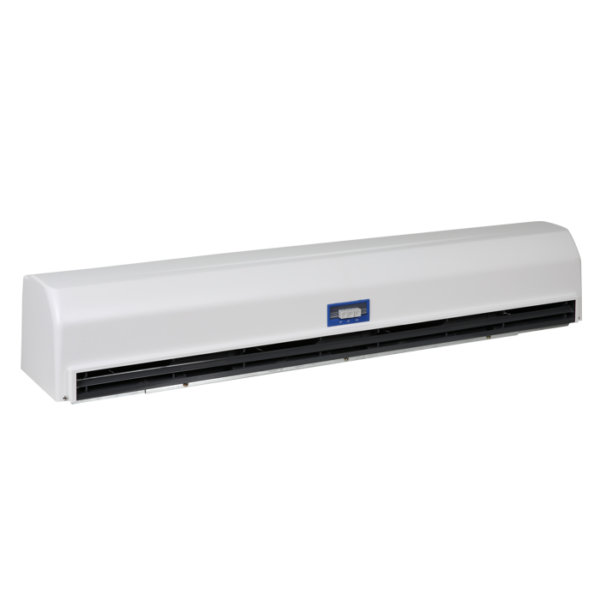

Air Curtain – ACC01 Series

ACC01 Series air curtain performs as an invisible door and best for doorway with frequent customers/staff traffic, e.g. restaurants, shopping malls, shops, warehouses, etc.

Share :

DESCRIPTION

ACC01 Series air curtain performs as an invisible door and best for doorway with frequent customers/staff traffic, e.g. restaurants, shopping malls, shops, warehouses, etc.

– As an invisible door for shut-out function, zoning function and circulation function.
– Rust proof air curtains with quality ABS casing and well sealing terminal box and enclosed motor
– Simple and aesthetic silhouette casing perfectly match with modern interior design
– Durable & reliable motor with high performance enclosed motor & ball bearing
– Well balanced plastic centrifugal fan wheel for quiet and stable operation
– Wide size range : 900mm, 1200mm, 1500mm

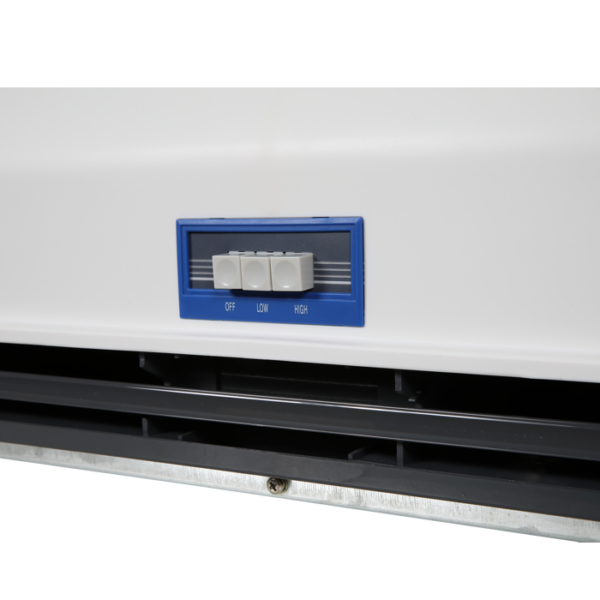

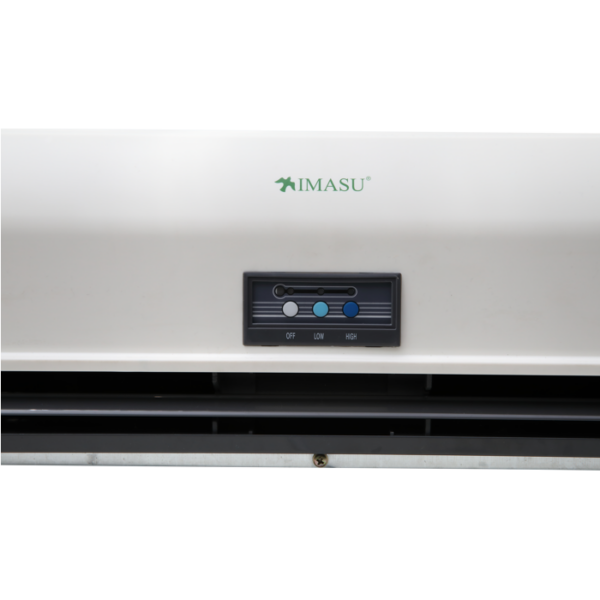

– Optional remote control or push button switch
– Optional filter net at air inlet
– Quick-fit installation feature with installation wall plate

SPECIFICATION

Model NumberDimension (mm)VoltageInput Power (W)Sound Level (dB(A))Air Velocity (m/s)
ACC01-1009F1S900 x 230 x 214220V~50HzHigh: 89
Low: 72		High: 45
Low: 42		High: 10
Low: 8.6
ACC01-1009F1RC900 x 230 x 214220V~50HzHigh: 89
Low: 72		High: 45
Low: 42		High: 10
Low: 8.6
ACC01-1012F1S1200 x 230 x 214220V~50HzHigh: 106
Low: 86		High: 46
Low: 43		High: 10
Low: 8.6
ACC01-1012F1RC1200 x 230 x 214220V~50HzHigh: 106
Low: 86		High: 46
Low: 43		High: 10
Low: 8.6
ACC01-1015F1S1500 x 230 x 214220V~50HzHigh: 142
Low: 118		High: 46
Low: 43		High: 10
Low: 8.6
ACC01-1015F1RC1500 x 230 x 214220V~50HzHigh: 142
Low: 118		High: 46
Low: 43		High: 10
Low: 8.6
ACC01-1409F1S900 x 230 x 214220V~50HzHigh: 200
Low: 164		High: 55
Low: 53		High: 14
Low: 12.5
ACC01-1409F1RC900 x 230 x 214220V~50HzHigh: 200
Low: 164		High: 55
Low: 53		High: 14
Low: 12.5
ACC01-1412F1S1200 x 230 x 214220V~50HzHigh: 250
Low: 190		High: 57
Low: 54		High: 14
Low: 12.5
ACC01-1412F1RC1200 x 230 x 214220V~50HzHigh: 250
Low: 190		High: 57
Low: 54		High: 14
Low: 12.5
ACC01-1415F1S 1500 x 230 x 214220V~50HzHigh: 325
Low: 254		High: 57
Low: 54		High: 14
Low: 12.5
ACC01-1415F1RC1500 x 230 x 214220V~50HzHigh: 325
Low: 254		High: 57
Low: 54		High: 14
Low: 12.5
ACC01-1809F1S900 x 230 x 214220V~50HzHigh: 276
Low: 206		High: 57
Low: 54		High: 18
Low: 15
ACC01-1809F1RC900 x 230 x 214220V~50HzHigh: 276
Low: 206		High: 57
Low: 54		High: 18
Low: 15
ACC01-1812F1S1200 x 230 x 214220V~50HzHigh: 320
Low: 257		High: 58
Low: 55		High: 18
Low: 15
ACC01-1812F1RC1200 x 230 x 214220V~50HzHigh: 320
Low: 257		High: 58
Low: 55		High: 18
Low: 15
ACC01-1815F1S1500 x 230 x 214220V~50HzHigh: 436
Low: 334		High: 59
Low: 56		High: 18
Low: 15
ACC01-1815F1RC1500 x 230 x 214220V~50HzHigh: 436
Low: 334		High: 59
Low: 56		High: 18
Low: 15

    Model No. : ACC01-1009F1S Categories: ,
