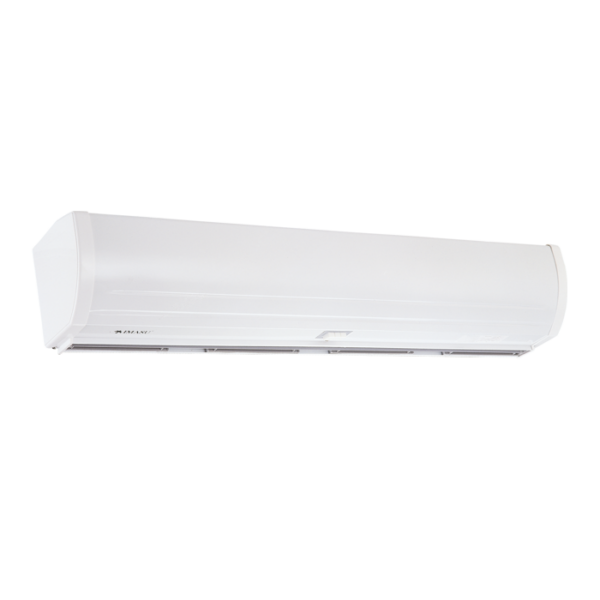

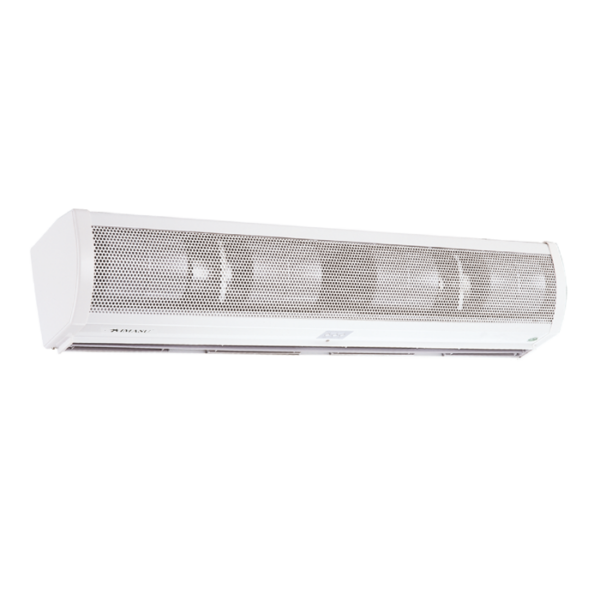

Air Curtain – FM12 Series
FM12 Series is a centrifugal air curtain designed for different application requirement, including entrance of shopping malls, restaurants, convenience stores, super markets, warehouses, department stores, lobbies, etc.
DESCRIPTION
FM12 Series is a centrifugal air curtain designed for different application requirement, including entrance of shopping malls, restaurants, convenience stores, super markets, warehouses, department stores, lobbies, etc.
– As an invisible door for shut-out function, zoning function and circulation function.
– Wide size range : 3ft/900mm, 3.3ft/1000mm, 4ft/1200mm, 5/ft/1500mm for specific models
– Optional push button or remote control switch (RC)
– Optional 2-speed or 3-speed
– Various louver design for selection
– Quiet operation
SPECIFICATION
| Model No. | Dimension (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/h) |
|---|---|---|---|---|---|---|
| FM1209 | 900 x 222 x 212 | 220V~50Hz | High: 242 Low: 211 | High: 55 Low: 50 | High: 2150 Low: 1850 | High: 1400 Low: 1230 |
| FM1209RC | 900 x 222 x 212 | 220V~50Hz | High: 242 Low: 211 | High: 55 Low: 50 | High: 2150 Low: 1850 | High: 1400 Low: 1230 |
| FM1210 | 1000 x 222 x 212 | 220V~50Hz | High: 242 Low: 211 | High: 55 Low: 50 | High: 2150 Low: 1850 | High: 1400 Low: 1230 |
| FM1210RC | 1000 x 222 x 212 | 220V~50Hz | High: 242 Low: 211 | High: 55 Low: 50 | High: 2150 Low: 1850 | High: 1400 Low: 1230 |
| FM1212 | 1200 x 222 x 212 | 220V~50Hz | High: 300 Low: 274 | High: 56 Low: 51 | High: 2150 Low: 1850 | High: 1850 Low: 1600 |
| FM1212RC | 1200 x 222 x 212 | 220V~50Hz | High: 300 Low: 274 | High: 56 Low: 51 | High: 2150 Low: 1850 | High: 1850 Low: 1600 |
| FM1215 | 1500 x 222 x 212 | 220V~50Hz | High: 392 Low: 384 | High: 56 Low: 51 | High: 2150 Low: 1850 | High: 2350 Low: 2050 |
| FM1215RC | 1500 x 222 x 212 | 220V~50Hz | High: 392 Low: 384 | High: 56 Low: 51 | High: 2150 Low: 1850 | High: 2350 Low: 2050 |
