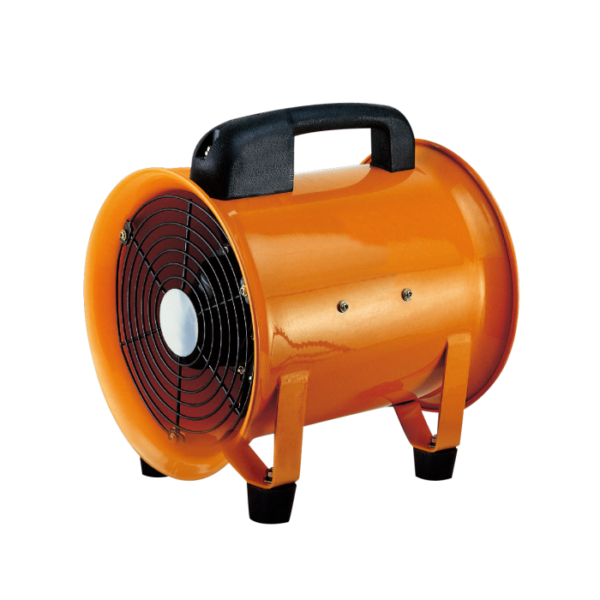

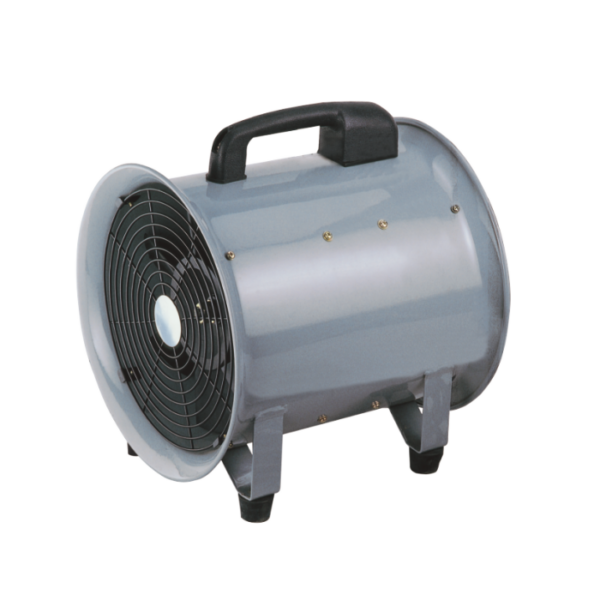

Portable Air Blower – CAD2 Series
CAD2 Series is designed for extracting indoor / underground air to outdoor / ground surface or to supply fresh air from open air to indoor / underground environment.
DESCRIPTION
CAD2 Series is designed for extracting indoor / underground air to outdoor / ground surface or to supply fresh air from open air to indoor / underground environment.
– The fans are recommended for working places in electric welding, soldering, tunnel work, basement, smoking room, chemical laboratory, vessel, basement car park, etc.
– Suitable for inflatable toy, inflatable promotional material, outdoor inflatable constructions, etc.
– Easy to move with handle
– Rolled sheet steel casing with epoxy paint finish for durable application.
– Die-cast aluminum impellers with stable and durable application
– High performance asynchronous induction type motor with built-in thermal cut-out protection.
– Optional flexible duct with extended length of 10m, 15m by connecting 5m/unit ducts.
– Safety fan grilles.
SPECIFICATION
| Model No. | Dimension (mm) | Blade Size (mm) | Voltage | Input Power (W) | Speed (R.P.M) | Air Volume (m³/min) | Air Pressure (Pa) |
|---|---|---|---|---|---|---|---|
| CAD2-20 | 252 x 295 x 328 | 200 | 220V~50Hz | 200 | 2900 | 25 | 250 |
| CAD2-25 | 285 x 310 x 370 | 250 | 220V~50Hz | 350 | 2900 | 45 | 300 |
| CAD2-30 | 342 x 337 x 410 | 300 | 220V~50Hz | 550 | 2900 | 62 | 350 |
