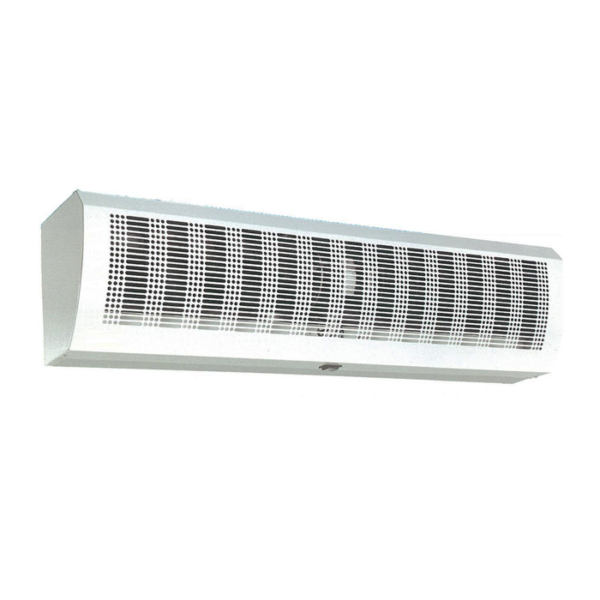

Air Curtain (Centrifugal) – FM31, 32, 33 Series

FM31, 32, 33 Series perform as an invisible door and best for doorway with frequent customers/staff traffic, e.g. restaurants, shopping malls, shops, warehouses, etc.

Share :

DESCRIPTION

FM31, 32, 33 Series perform as an invisible door and best for doorway with frequent customers/staff traffic, e.g. restaurants, shopping malls, shops, warehouses, etc.

– Heating/cooling retention efficiency of 70-90% helps lower air-conditioning cost
– Blocking out unpleasant elements like dust, fumes, odors and insects, best for fruit stores, grocery stores, butcher shops, bakery, etc.
– Perfect for separating air conditioning zone and non-air-conditioning zone; smoking area and non-smoking area
– Ideal for application in bowling alleys, lounges, lobbies and rest areas butcher shops, etc.
– Facilitate air circulation in spacious areas
– Ideal for application in halls and lobbies


SPECIFICATION

Model No. Dimension (mm)VoltageInput Power (W) Sound Level (dB(A)) Air Volume (m³/min)
FM3109900 x 212 x 230220V~50Hz3254417
FM31121200 x 212 x 230220V~50Hz4204522
FM31151500 x 212 x 230220V~50Hz5354828
FM3209900 x 212 x 230220V~50Hz4004621
FM32121200 x 212 x 230220V~50Hz5404728
FM32151500 x 212 x 230220V~50Hz6705035
FM3309900 x 212 x 230220V~50Hz4505225
FM33121200 x 212 x 230220V~50Hz6005434
FM33151500 x 212 x 230220V~50Hz7505542

Model No. : FM3109 Categories: ,
