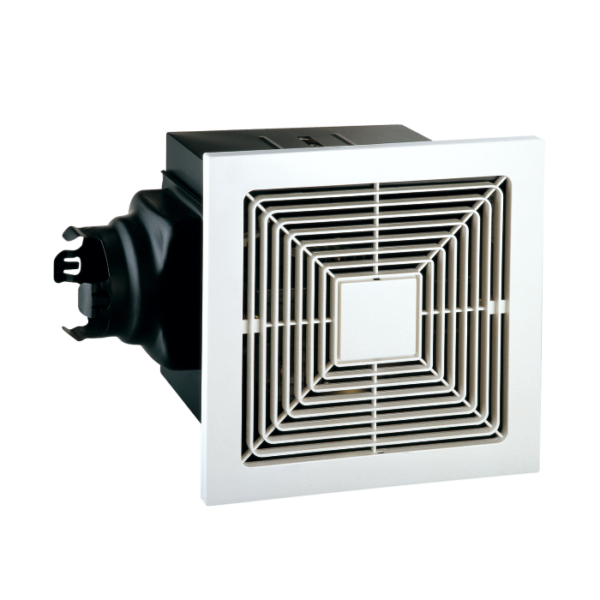

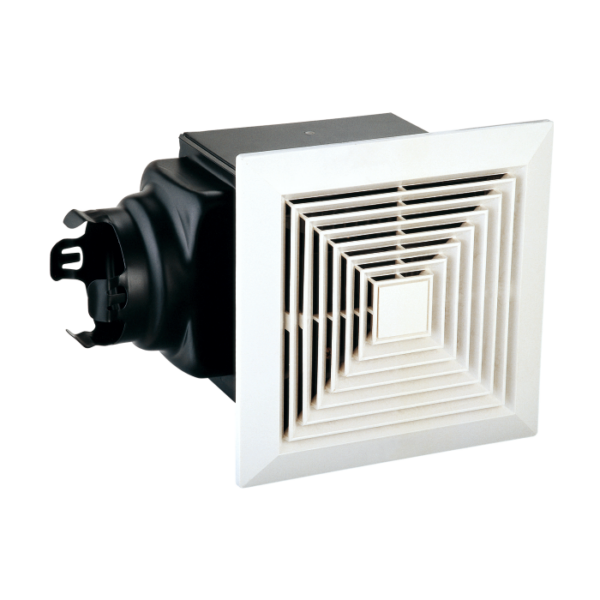

Metel Cased Range TUB17 TUB24
TUB17 & TUB24 are specially designed for maintaining the best indoor ventilation and air circulation of domestic and commercial premises, e.g. bathroom, lavatory, living room, meeting room, bedroom, etc.
DESCRIPTION
TUB17 & TUB24 are specially designed for maintaining the best indoor ventilation and air circulation of domestic and commercial premises, e.g. bathroom, lavatory, living room, meeting room, bedroom, etc.
Simple and aesthetic silhouette perfectly match with modern interior design
1. MOTOR
Durable and reliable motor with high performance
Durable ball bearing
Quiet operation
2. SIROCCO FAN WHEEL
Well balanced plastic forward curved centrifugal fan
Quiet and stable operation
3. CASING
Metal casing with rust-proof powder coating
4. LOUVER
Various aesthetically pleasing designs for selection
Easy-to-install and remove
5. DETACHABLE SPIGOT
Convenient for installation, maintenance, and replacement
6. MOJUNTING BRACKET
easy for suspending / ceiling installation
SPECIFICATION
| Model No. | Dimension (mm) | Applicable Duct Ø (mm) | Installation Space (mm) | Voltage | Input Power (W) | Speed (R.P.M) | Air Volume (m³/min) | Air Pressure (Pa) |
|---|---|---|---|---|---|---|---|---|
| TUB17 | 218 x 182 x 230 | 100 | 176 x 176 | 220V~50Hz | 26 | 1250 | 2.4 | 139 |
| TUB24 | 270 x 197 x 290 | 100 | 237 x 237 | 220V~50Hz | 29 | 750 | 2.6 | 160 |
