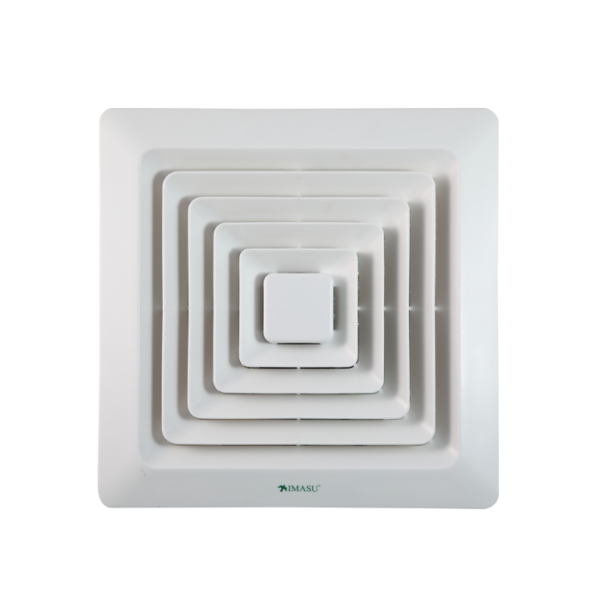

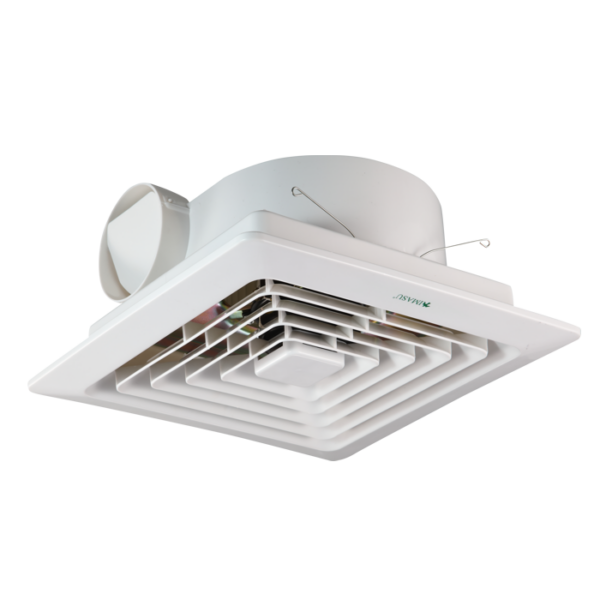

Full Plastic Range TUB815 TUB816
TUB815 and TUB816 are specially designed for small-medium air exhaust volume requirement in bathrooms and lavatories in houses, apartments, offices, stores, schools and hospitals, etc..
DESCRIPTION
Full Plastic Range is specially designed for small-medium air exhaust volume requirement in bathrooms and lavatories in houses, apartments, offices, stores, schools and hospitals, etc.
– Capacitor Run Induction Motor provides lower input power, high performance, long durability and stability
– Various aesthetically pleasing design louvers for selection.
– Well balanced plastic forward curved centrifugal fan, quiet and stable operation.
SPECIFICATION
| Model No. | Dimension (mm) | Applicable Duct Ø (mm) | Installation Space (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/min) | Air Pressure (Pa) |
|---|---|---|---|---|---|---|---|---|---|
| TUB815 | 250 x 127 x 212 | 100 | 220 x220 | 220V~50Hz | 22 | 43 | 1130 | 1.7 | 63 |
| TUB816 | 312 x 131 x 252 | 100 | 260 x 260 | 220V~50Hz | 30 | 45 | 1060 | 3.2 | 110 |
