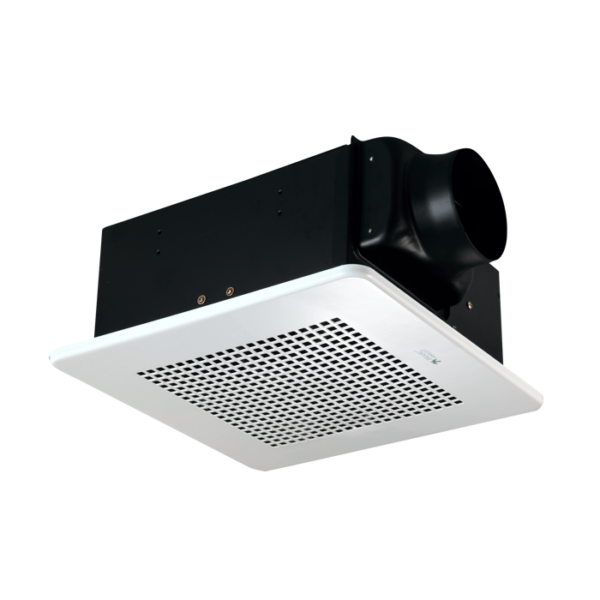

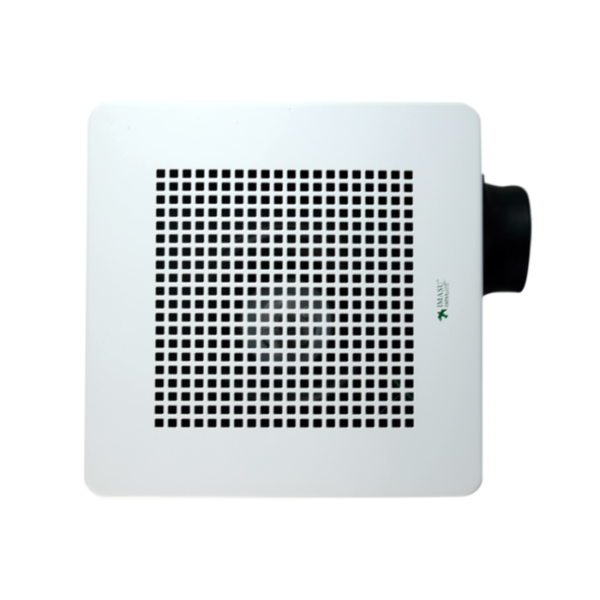

Full Metal Super Slim Range TUB215
Super Slim Range TUB215 is specially designed with super slim casing and compact structure for limited ceiling space installation
DESCRIPTION
Super Slim Range TUB215 is specially designed with super slim casing and compact structure for limited ceiling space installation
Welding joint design casing for durable and aesthetical needs
– Metal casing serves the requirement of fire retardant.
– Capacitor run induction motor is adopted with lower input power, high performance, long durability and reliability
– Detachable cassette type discharge opening is designed for convenient ducting, installation and maintenance
– Various aesthetically pleasing design louvers for selection.
– Mounting feet are included for easy suspending and ceiling installation.
Same height level of inlet and outlet allows an intermediate position for ducting system.
– Well balanced, high graded aluminum high pressure forward curved centrifugal fan for quiet and stable operation.
SPECIFICATION
| Model No. | Dimension (mm) | Applicable Duct Ø (mm) | Installation Space (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/min) | Air Pressure (Pa) |
|---|---|---|---|---|---|---|---|---|---|
| TUB215 | 316 x 160 x 329 | 100 | 274 x 274 | 220V~50Hz | 39 | 42 | 960 | 4.5 | 150 |
