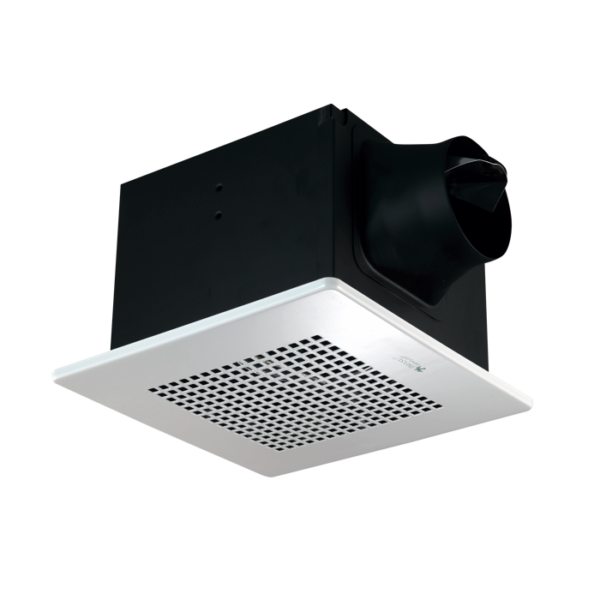

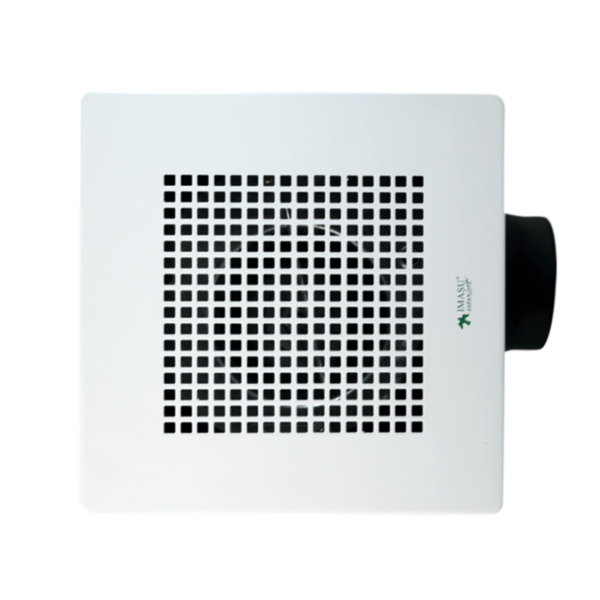

Full Metal Range TUB115
TUB115 is specially designed for high air exhaust volume requirement in a ventilation system in premises with far distance from openings.
DESCRIPTION
Full Metal Range is specially designed for high air exhaust volume requirement in a ventilation system in premises with far distance from openings.
– Capacitor Run Induction Motor provides lower input power, high performance, long durability and stability
– Detachable cassette type discharge opening is designed for convenient ducting, installation and maintenance
– Various aesthetically pleasing design louvers for selection.
– Mounting feet are included for easy suspending and ceiling installation.
– Metal Sirocco Fan : well balanced, high graded aluminum high pressure centrifugal fan, quiet and stable operation.
– Welding joint design casing for durable and aesthetical need.
– Full metal construction for fire retardant requirement.
SPECIFICATION
| Model No. | Dimension (mm) | Applicable Duct Ø (mm) | Installation Space (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/min) | Air Pressure (Pa) |
|---|---|---|---|---|---|---|---|---|---|
| TUB115 | 267 x 202 x 280 | 100 | 224 x 224 | 220V~50Hz | 32 | 32 | 1040 | 4 | 100 |
