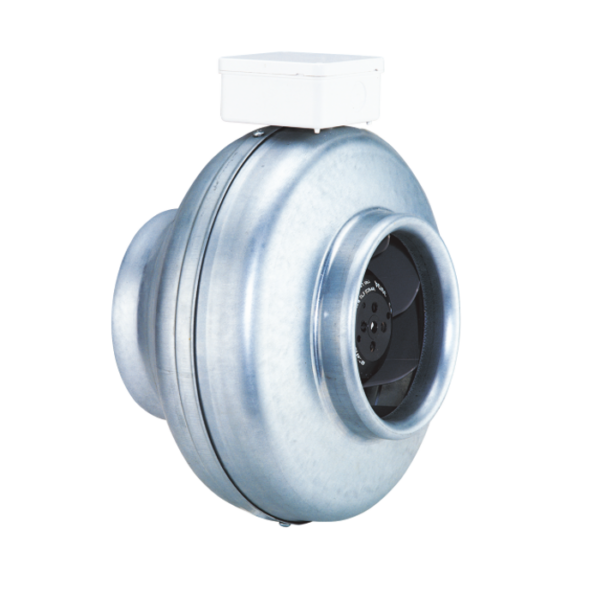

In Line Centrifugal Fan – ICF Series

In-line Centrifugal Fan Range is designed with function for Direct Exhaust, Direct Intake, Air Pressure Boosting in the ducted system. The Fan is specially designed for using in extensive ventilation system in premises such as warehouses, plants, multi-storey buildings, etc.

Share :

DESCRIPTION

In-line Centrifugal Fan Range is designed with function for Direct Exhaust, Direct Intake, Air Pressure Boosting in the ducted system. The Fan is specially designed for using in extensive ventilation system in premises such as warehouses, plants, multi-storey buildings, etc.

* Compact size casing is designed for small installation space
* Well balance aluminum high pressure backward curved centrifugal fan provides quiet and stable operation
* The fan is driven by External Rotor Motor which features high static pressure, speed controllability, low operating temperature, precise balance, compact size, detachable impeller & motor for convenient maintenance.
*The fan is with mounting versatility and can be mounted at any angle in any point along the ducting system and simple and easy installation.
*The fan is designed to match standard dimensions of duct and the need for transition pieces is eliminated.


SPECIFICATION

Model No. Dimension (mm)Applicable Duct Ø (mm) Voltage Sound Level (dB(A)) Speed (R.P.M)Air Volume (m³/h)Air Pressure (Pa)
ICF100B
243 x 243 x 194100220V~50Hz472400
252324
ICF125B

243 x 243 x 195125220V~50Hz47
2450

312326
ICF150B
333 x 333 x 222150220V~50Hz51

2450


570379
ICF160B
333 x 333 x 222160
220V~50Hz51
2750660402
ICF200B
333 x 333 x 223200220V~50Hz542650
780583
ICF250B
333 x 333 x 206250
220V~50Hz532600
1026625
ICF315B401 x 401 x 230315
220V~50Hz612450
1476 750

    Model No. : ICF100B Categories: ,
