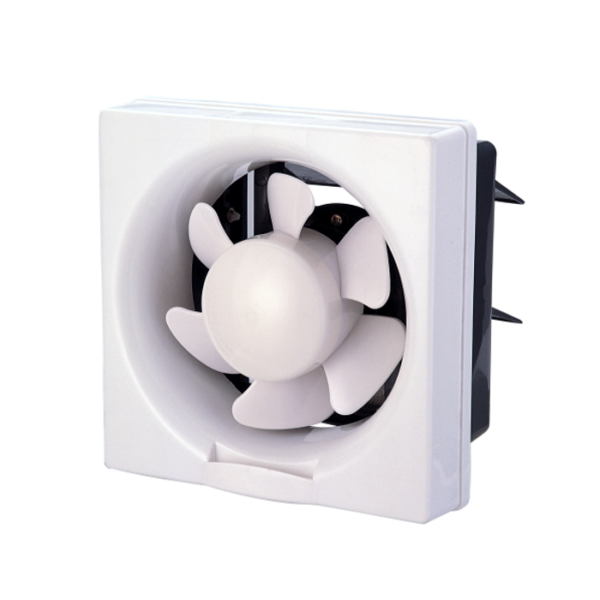

Wall Mount Exhaust Fan – HAE18 Series
HAE18 Series is designed for direct exhaust to outdoor to maintain the best indoor ventilation and air circulation.
DESCRIPTION
HAE11 Series is designed for direct exhaust to outdoor to maintain the best indoor ventilation and air circulation.
– The fans are recommended for domestic and commercial premises, e.g. bathroom, bedroom, living room, kitchen, lavatory, meeting room, office, computer room, restaurant, classroom, hospital ward, etc.
– Full plastic design
– Durable and reliable Capacitor Run Induction Motor with high performance is adopted.
– Safety Blade Holding Cap for tightening blade position. Detachable for convenience of blade cleaning.
SPECIFICATION
| Model No. | Dimension (mm) | Blade Size (mm) | Installation Space (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/min) |
|---|---|---|---|---|---|---|---|---|
| HAE18-15B2 | 230 x 130 x 230 | 150 | 200 x 200 | 220V~50Hz | 24 | 39 | 1450 | 4.3 |
| HAE18-20B2 | 290 x 129 x 290 | 200 | 250 x 250 | 220V~50Hz | 28 | 40 | 1250 | 8 |
| HAE18-25B2 | 333 x 140 x 333 | 250 | 300 x 300 | 220V~50Hz | 38 | 42 | 1200 | 12 |
| HAE18-30B2 | 385 x 134 x 385 | 300 | 350 x 350 | 220V~50Hz | 46 | 44 | 1050 | 18 |
