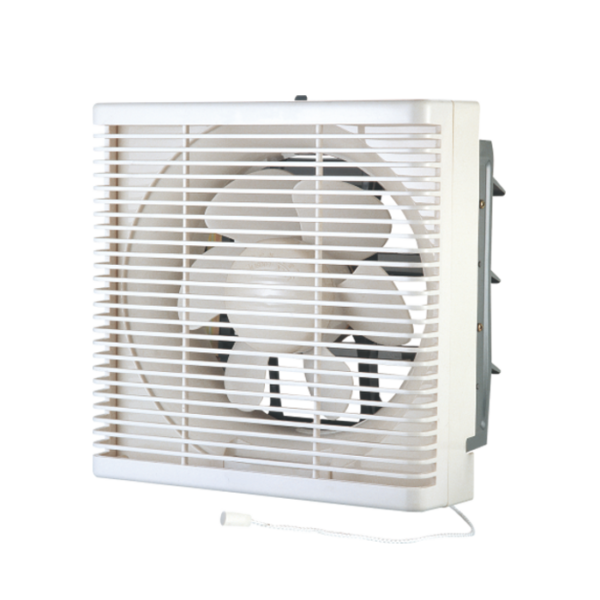

Wall Mount Exhaust Fan – HAE12 Series
HAE12 Series is designed for direct exhaust to outdoor to maintain the best indoor ventilation and air circulation.
DESCRIPTION
HAE11 Series is designed for direct exhaust to outdoor to maintain the best indoor ventilation and air circulation.
– The fans are recommended for domestic and commercial premises, e.g. bathroom, bedroom, living room, kitchen, lavatory, meeting room, office, computer room, restaurant, classroom, hospital ward, etc.
– Durable and reliable Capacitor Run Induction Motor with high performance is adopted.
– Safety Blade Holding Cap for tightening blade position. Detachable for convenience of blade cleaning.
– Detachable Oil Retainer is available
– Elegant and aesthetically design Front Louver is available. Detachable for easy cleaning. Safety protection from accidental touching of fan blades by fingers and outside objects.
– Optional Pullcord shutter is available
SPECIFICATION
| Model No. | Dimension (mm) | Blade Size (mm) | Installation Space (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/min) |
|---|---|---|---|---|---|---|---|---|
| HAE12-15B2 | 239 x 125 x 239 | 150 | 200 x 200 | 220V~50Hz | 24 | 39 | 1350 | 4.3 |
| HAE12-20B2 | 296 x 125 x 296 | 200 | 250 x 250 | 220V~50Hz | 28 | 40 | 1250 | 8.1 |
| HAE12-25B2 | 342 x 128 x 342 | 250 | 300 x 300 | 220V~50Hz | 38 | 42 | 1200 | 12 |
| HAE12-30B2 | 400 x 140 x 400 | 300 | 350 x 350 | 220V~50Hz | 46 | 44 | 1050 | 18 |
