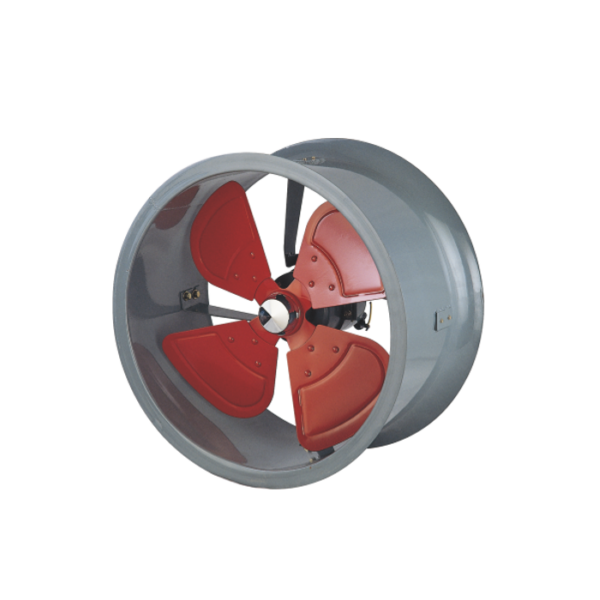

Industrial Cylindrical Cased Axial Flow Fan – CAF1 Series
CAF1 Series is designed for direct exhaust to outdoor to maintain the best indoor ventilation, air circulation, cooling and drying.
DESCRIPTION
CAF1 Series is designed for direct exhaust to outdoor to maintain the best indoor ventilation, air circulation, cooling and drying.
– The fans are recommended for large air volume at high air pressure ventilation and coolig of work places including production plant, factory, warehouses; cooling of motors, electrical machines, etc., oven drying or paint drying, etc.
– Wide size range to suit different application environment and requirement.
– Excellence asynchronous induction type motor with professional ball bearing and built-in thermal protection; silicon steel stator and squirrel cage rotor.
– Single phase or Three phase for selection.
– Wall mount, castor stand or with wheels are available.
– Optional front & back grilles.
– Connectable duct casing.
– Well balanced steel impellers.
SPECIFICATION
| Model No. | Dimension (mm) | Blade Size (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/min) | Air Pressure (Pa) |
|---|---|---|---|---|---|---|---|---|
| CAF1-25 | 295 x 295 x 190 | 250 | 220V~50Hz | 40 | 60 | 1300 | 11.4 | 35 |
| CAF1-30 | 350 x 350 x 190 | 300 | 220V~50Hz | 55 | 63 | 1300 | 16.4 | 38 |
| CAF1-40 | 470 x 470 x 245 | 400 | 220V~50Hz | 150 | 67 | 1400 | 50 | 95 |
| CAF1-50 | 570 x 570 x 245 | 500 | 220V~50Hz | 250 | 70 | 1400 | 98 | 111 |
