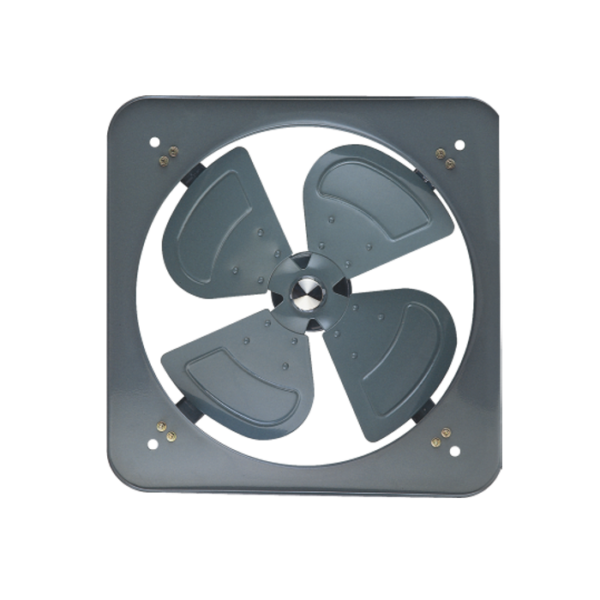

Industrial Axial Flow Exhaust Fan – IAEL Series
IAEL Series is designed for direct exhaust to outdoor to maintain the best indoor ventilation and air circulation.
DESCRIPTION
IAEL Series is designed for direct exhaust to outdoor to maintain the best indoor ventilation and air circulation.
– The fans are recommended for large air volume at high air pressure requirement including large scale factory, workshop, commercial / industrial drying room, agricultural extract & supply, greenhouse, etc.
– Excellence asynchronous induction type motor with professional ball bearing and built-in thermal protection.
– Vibration proof cushion between motor supporting arms and fan body.
– Optional front & back grilles
– Hi grade rolled sheet steel impellers and well balanced design.
SPECIFICATION
| Model No | Dimension (mm) | Blade Size (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/min) |
|---|---|---|---|---|---|---|---|
| IAEL40 | 475 x 475 x 223.5 | 400 | 220V~50Hz | 150 | 68 | 1400 | 48 |
| IAEL50 | 585 x 585 x 239.5 | 500 | 220V~50Hz | 150 | 65 | 900 | 68 |
| IAEL60 | 716 x 716 x 270 | 600 | 220V~50Hz | 280 | 72 | 900 | 115 |
