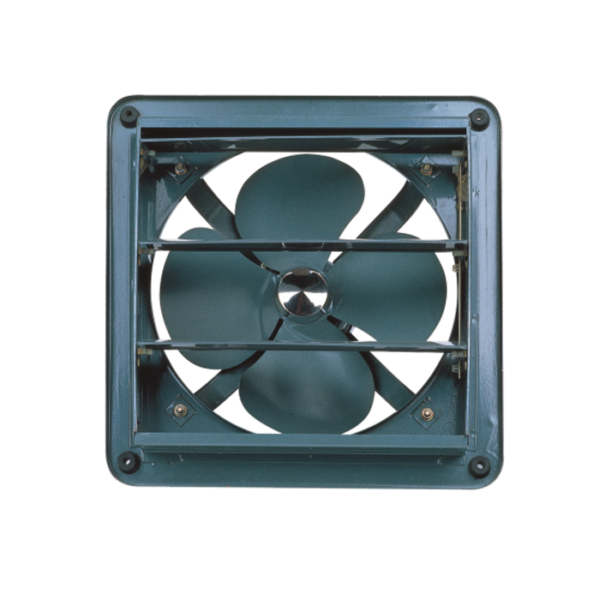

Industrial Axial Flow Exhaust Fan – IAE3 Series
IAE3 Series is designed for direct exhaust to outdoor to maintain the best indoor ventilation and air circulation.
DESCRIPTION
IAE3 Series is designed for direct exhaust to outdoor to maintain the best indoor ventilation and air circulation.
РThe fans are recommended for small air volume at low pressure requirement including small restaurant, caf̩, bar, commercial premise and workshop, etc.
– Excellence performance motor with professional ball bearing and built-in thermal protection
– Vibration proof cushion between motor supporting arms and fan body.
– Feature with front shutter.
SPECIFICATION
| Model No. | Dimension (mm) | Blade Size (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/min) |
|---|---|---|---|---|---|---|---|
| IAE320B | 294 x 294 x 184 | 200 | 220V~50Hz | 28 | 53 | 1350 | 8.04 |
| IAE325B | 318 x 318 x 201 | 250 | 220V~50Hz | 33 | 55 | 1350 | 12.5 |
| IAE330B | 376 x 376 x 212 | 300 | 220V~50Hz | 38 | 58 | 1350 | 18.5 |
| IAE335B | 453 x 453 x 223 | 350 | 220V~50Hz | 54 | 62 | 1350 | 23.5 |
