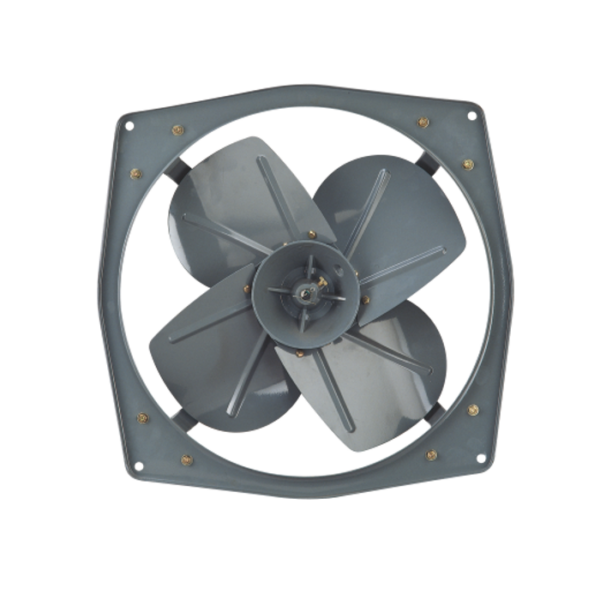

Industrial Axial Flow Exhaust Fan – IAE4 Series
IAE4 Series is designed for direct exhaust to outdoor to maintain the best indoor ventilation and air circulation.
DESCRIPTION
IAE4 Series is designed for direct exhaust to outdoor to maintain the best indoor ventilation and air circulation.
– The fans are recommended for large air volume at high air pressure requirement including large scale factory, workshop, commercial / industrial drying room, agricultural extract & supply, greenhouse, warehouse, etc.
– Excellence performance motor with professional ball bearing and built-in thermal protection
– Vibration proof cushion between motor supporting arms and fan body.
– Optional front & back grilles.
SPECIFICATION
| Model No. | Dimension (mm) | Blade Size (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/min) |
|---|---|---|---|---|---|---|---|
| IAE430 | 388 x 388 x 308 | 300 | 220V~50Hz | 120 | 65 | 1400 | 33 |
| IAE438 | 473 x 473 x 368 | 380 | 220V~50Hz | 180 | 70 | 1400 | 60 |
| IAE445 | 550 x 550 x 447.5 | 450 | 220V~50Hz | 255 | 74 | 1400 | 85 |
| IAE460-900 | 710 x 710 x 590 | 600 | 220V~50Hz | 320 | 77 | 900 | 100 |
| IAE460-1400 | 710 x 710 x 590 | 600 | 220V~50Hz | 750 | 80 | 1400 | 130 |
