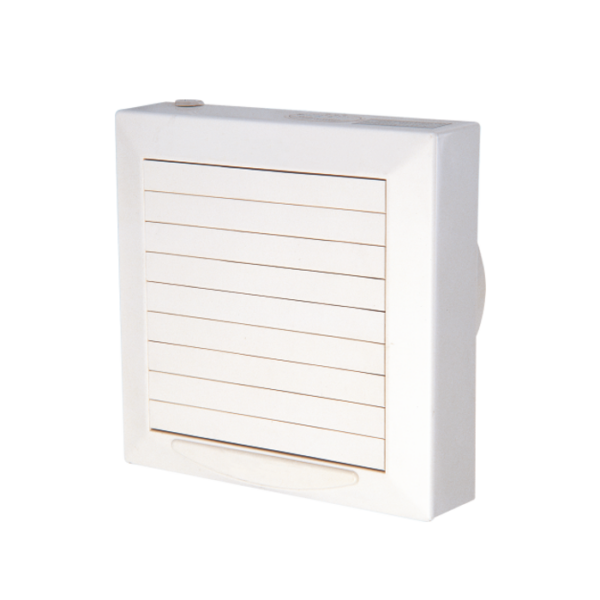

Window Mount Exhaust Fan – Front Shutter Type – HAE35 Series
HAE35 Series is designed for direct exhaust to outdoor to maintain the best indoor ventilation and air circulation.
DESCRIPTION
HAE35 Series is designed for direct exhaust to outdoor to maintain the best indoor ventilation and air circulation.
– The fans are recommended for domestic and commercial premises, e.g. bathroom, bedroom, living room, kitchen, lavatory, meeting room, office, computer room, restaurant, classroom, hospital ward, etc.
– Durable and reliable Shaded Pole Motor is adopted.
– Magnetic Shutter System is applied for
(1) Stable opening of shutter plates by electrical control ensures the best air exhaust volume
(2) Light landing of shutter plates by electrical control prevents noise from sudden shutting of shutter plates from overhead wind, blocks outdoor dust and insects, and maintains indoor temperature.
SPECIFICATION
| Model No. | Dimension (mm) | Blade Size (mm) | Installation Space (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/min) |
|---|---|---|---|---|---|---|---|---|
| HAE35-10E | 160 x 52 x 160 | 100 | Ø116 | 220V~50Hz | 13 | 44 | 2000 | 1.3 |
| HAE35-15E | 206 x 62 x 206 | 150 | Ø164 | 220V~50Hz | 16 | 44 | 1340 | 3.2 |
