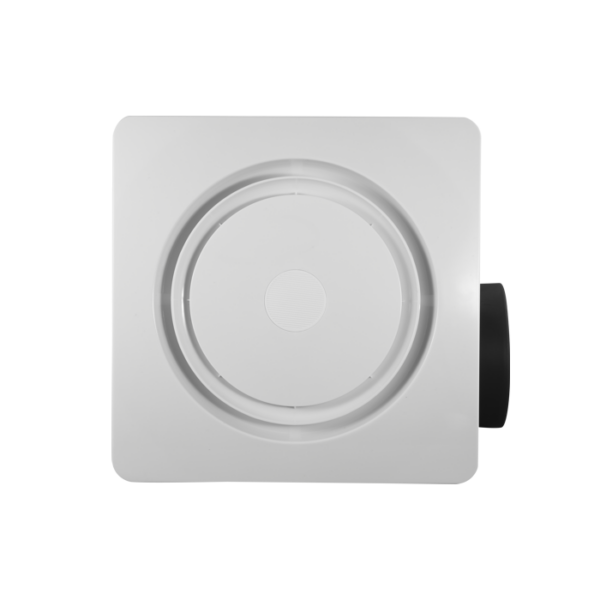

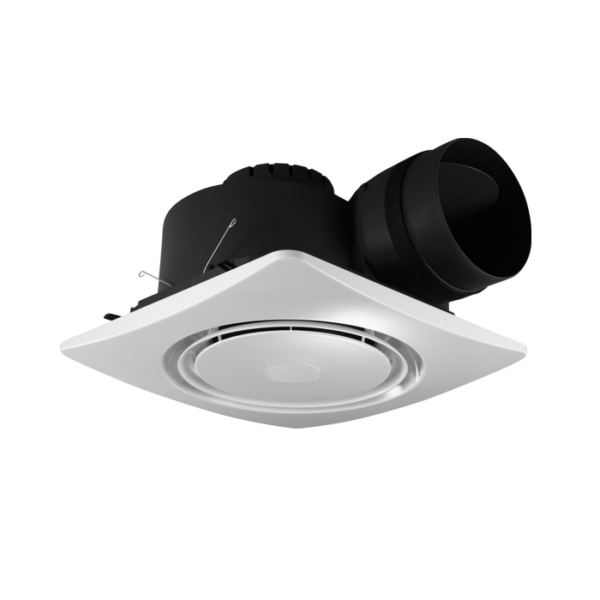

Full Plastic Range TUB718 TUB918

TUB918 and TUB718 are specially designed for maintaining the best indoor ventilation and air circulation of domestic and commercial premises, e.g. bathroom, and lavatory, living room, meeting room, bedroom, etc.

Share :

DESCRIPTION

TUB918 and TUB718 are specially designed for maintaining the best indoor ventilation and air circulation of domestic and commercial premises, e.g. bathroom, and lavatory, living room, meeting room, bedroom, etc.

In addition to high performance in air volume and static pressure, the quick-fit and compatible structure are the thoughtful features for efficient installation and easy maintenance.

Simple and aesthetic silhouette perfectly match with modern interior design

1. Motor
-Durable and reliable motor with high performance
-Ball bearing motors for durable application
-Quiet operation
2. Sirocco Fan Wheel
-Well balanced plastic forward curved centrifugal fan
-Quiet and stable operation
3. Fan body fits for :
3.1 Square grille/installation openings – F2 Grille
3.2 Round grille/installation openings – Grille model and dimensions to be advised
4. Quick-fit installation features :
-Convenient installation with ceiling mounting crimp
-Duct extender for easy duct installation and prevent interference between the shutter and theduct
5. Variants available (optional)
-Basic
-Delay Timer
-Humidity sensor
-PIR sensor
-Lighting


SPECIFICATION

Model No.
Dimension (mm)Applicable Duct Ø (mm) Installation Space (mm)VoltageInput Power (W) Speed (R.P.M)Air Volume (m³/h)Air Pressure (Pa)
TUB718
345 x 208 x 345150
310 x 295240V~50Hz
60925278352
TUB918290 x 194 x 290100245 x 230
240V~50Hz301400144242

Model No. : TUB718 Categories: ,
