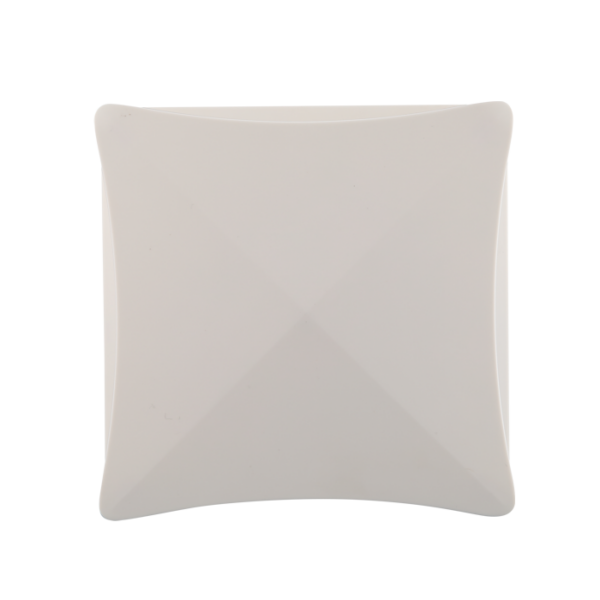

HAE302 and 301 – Diamond Series exhaust fans are specially designed for maintaining best indoor ventilation and air circulation of domestic and commercial premises, e.g. bathroom, and lavatory, living room, meeting room, bedroom, etc.
ï¬ Durable and reliable motor with high performance
ï¬ Ball bearing motor for vertical / horizontal application
ï¬ Quite and smooth operation
2. Mixed flow impeller
ï¬ Boost high air pressure with stronger air extract

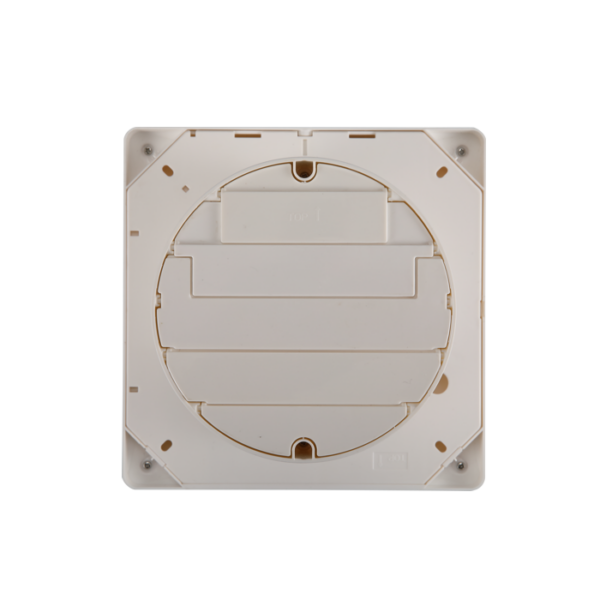

3. Fully opening and closing shutters to improve insulation
4. IP24 rated for F4 grille; IP44 rated for F5 grille
5. Suitable for wall and ceiling mounted.
6. Back draught shutter available for 100mm/4â€ and 150mm/6â€ fan, optional electrical shutter available for 150mm/6â€ fan
7. Optional delay timer, humidity sensor, etc.
|Model No.||Dimension (mm)||Blade Size (mm)||Voltage||Input Power (W)||Sound Level (dB(A))||Speed (R.P.M)||Air Volume (m³/h)||Air Pressure (Pa)|

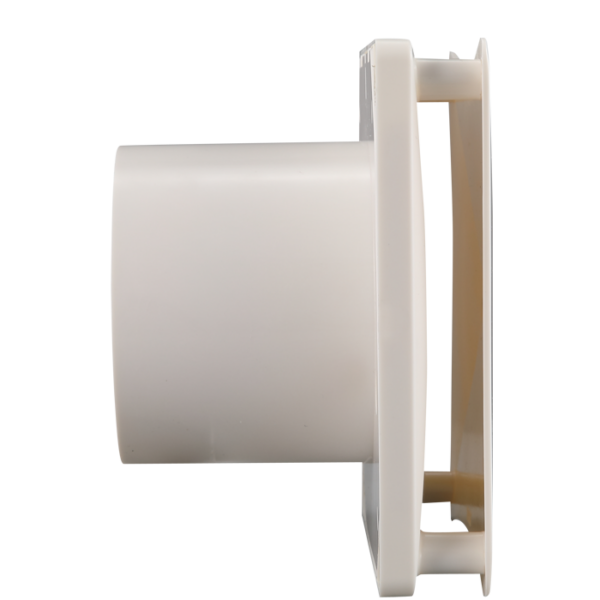

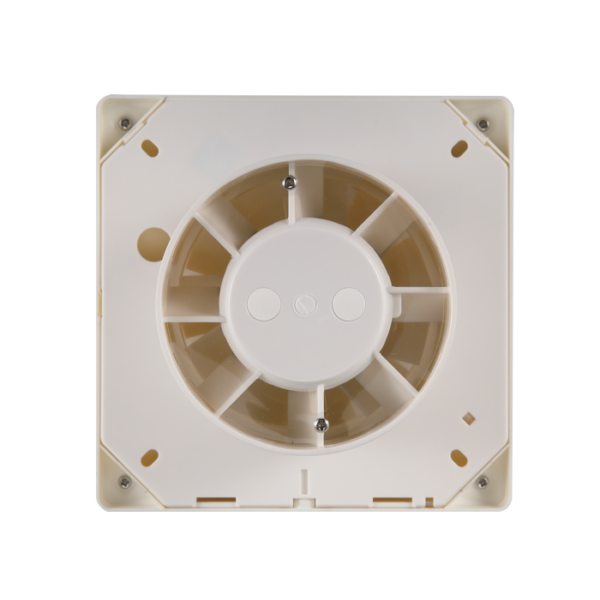

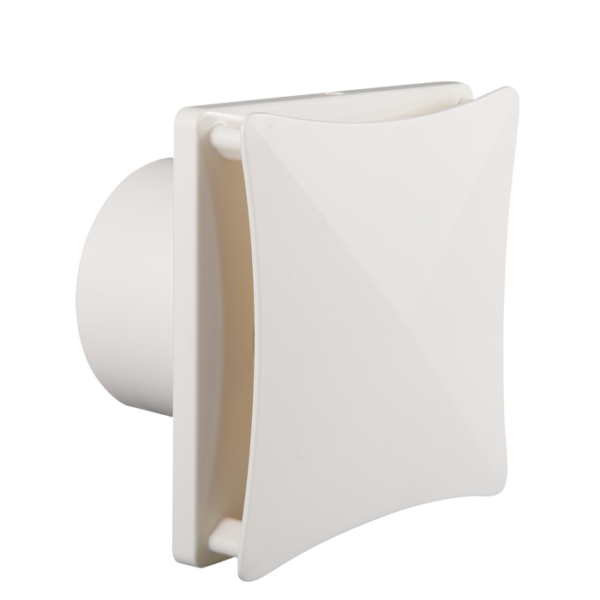

|HAE302-10-F5||158.2 x 115.2 x 158.2||100||220V~50Hz||12.5||40 ± 3||2400||96||18|

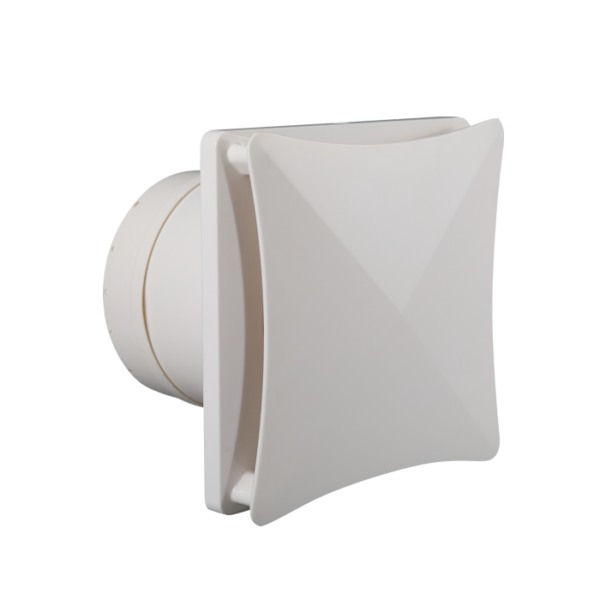

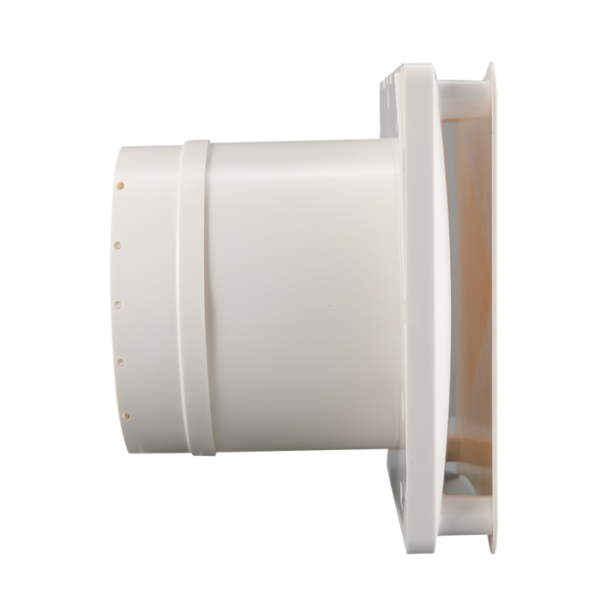

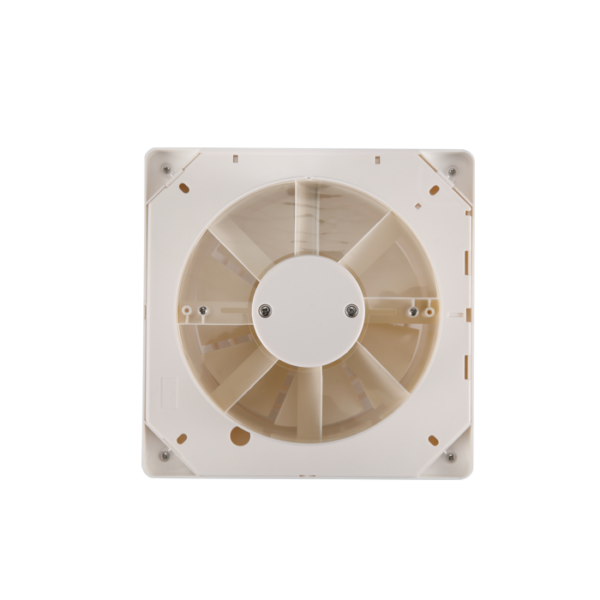

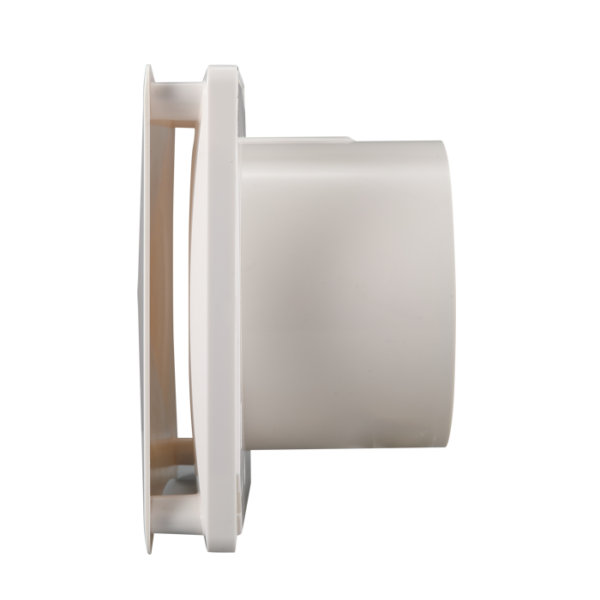

|HAE301-15-F5||211.8 x 148 x 211.8||150||220V~50Hz||24||40 ± 3||2300||204||39|
