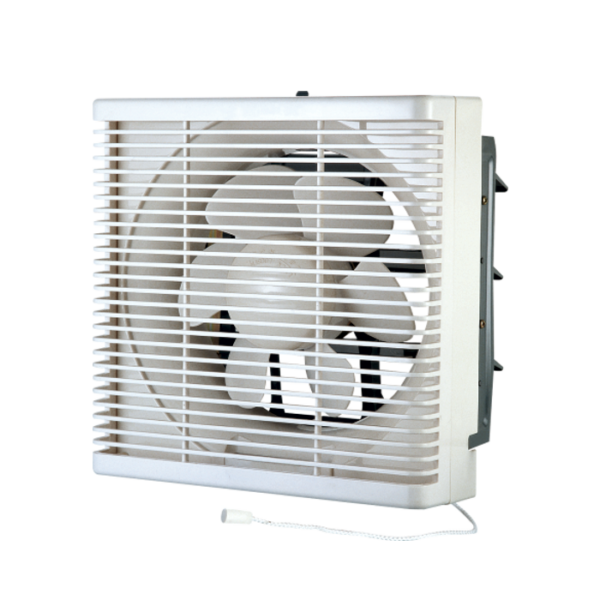

Wall Mount Exhaust Fan – REA12 Series
REA12 Series is designed for direct air exhaust and direct air intake to / from outdoor to maintain the best indoor ventilation and air circulation.
DESCRIPTION
REA12 Series is designed for direct air exhaust and direct air intake to / from outdoor to maintain the best indoor ventilation and air circulation.
– The fans are recommended for domestic and commercial premises, e.g. bathroom, bedroom, living room, kitchen, lavatory, meeting room, office, computer room, restaurant, classroom, hospital ward, etc.
– Durable and reliable Capacitor Run Induction Motor with high performance is adopted.
– Safety Blade Holding Cap for tightening blade position. Detachable for convenience of blade cleaning.
– Detachable Oil Retainer is available.
– Elegant and aesthetically design Front Louver is available. Detachable for easy cleaning. Safety protection from accidental touching of fan blades by fingers and outside objects.
SPECIFICATION
| Model No. | Dimension (mm) | Blade Size (mm) | Installation Space (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/min) |
|---|---|---|---|---|---|---|---|---|
| REA12-20B2 | 296 x 162 x 296 | 200 | 250 x 250 | 220V~50Hz | 28 | 40 / 40 | 1250 / 1300 | 8.1 / 6.0 |
| REA12-25B2 | 342 x 169 x 342 | 250 | 300 x 300 | 220V~50Hz | 38 | 43 / 45 | 1200 / 1280 | 12 / 10 |
| REA12-30B2 | 400 x 176 x 400 | 300 | 350 x 350 | 220V~50Hz | 46 | 46 / 57 | 1050 / 1000 | 18 / 14 |
