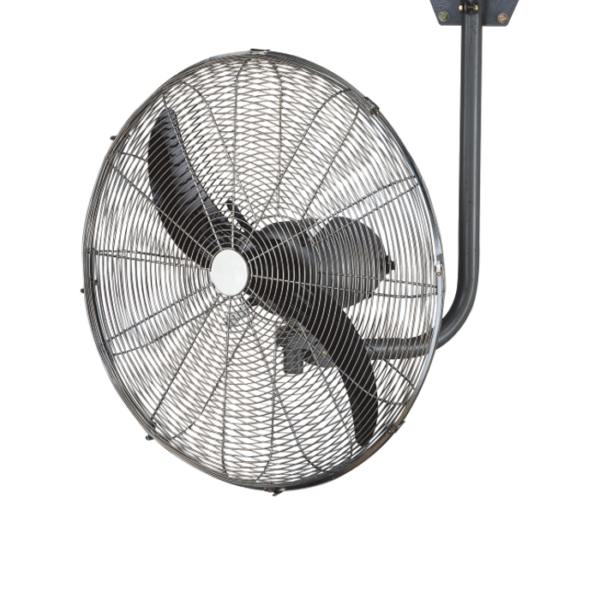

IFW50M-65M

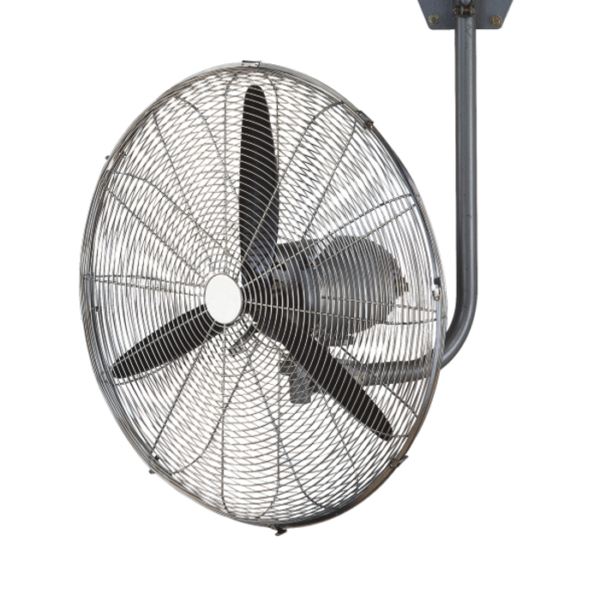

IFW75M

Propeller Fan – IFW Series

IFW Series is designed for residential, commercial and industrial ventilation, cooling, indoor circulation applications in gym, warehouse and factory, stadium, shaded playground, underground/multi-storey car park, shaded train station platform, public transport terminal, lobby, etc.

Share :

DESCRIPTION

IFW Series is designed for residential, commercial and industrial ventilation, cooling, indoor circulation applications in gym, warehouse and factory, stadium, shaded playground, underground/multi-storey car park, shaded train station platform, public transport terminal, lobby, etc.

– Size range for different application requirement: 20”/500mm, 26”/650mm, 30”/750mm
– Dense / normal grilles for selection
– High performance and heavy duty motors with built-in thermal cut-out protection.
– Die-cast iron base
– Optional wired switch controller for safe and convenient speed regulation.
– Oscillating gears protection mechanism (jammed proof) is adopted.
– High grade die-cast aluminum impellers with well balanced design, to give high velocity.
– Electroplating chrome grilles or epoxy paint grilles for selection.


SPECIFICATION

Model No. Blade Size (mm)VoltageInput Power (W)Sound Level (dB(A))Speed (R.P.M)Air Volume (m³/min)
IFW50M500220V~50HzHigh: 133
Medium: 108
Low: 118
High: 65
Medium: 60
Low: 53
High: 1380
Medium: 1060
Low: 835
High: 145
Medium: 110
Low: 80
IFW65M650220V~50HzHigh: 179
Medium: 143
Low: 135
High: 68
Medium: 59
Low: 55
High: 1380
Medium: 1050
Low: 890
High: 230
Medium: 170
Low: 110
IFW75M750220V~50HzHigh: 207
Medium: 181
Low: 187
High: 80
Medium: 76
Low: 68
High: 1400
Medium: 1200
Low: 920
High: 300
Medium: 220
Low: 160

Model No. : IFW50M Categories: ,
