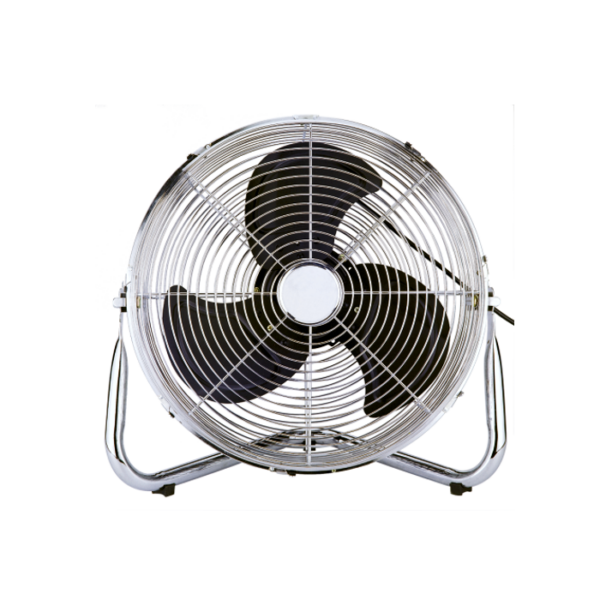

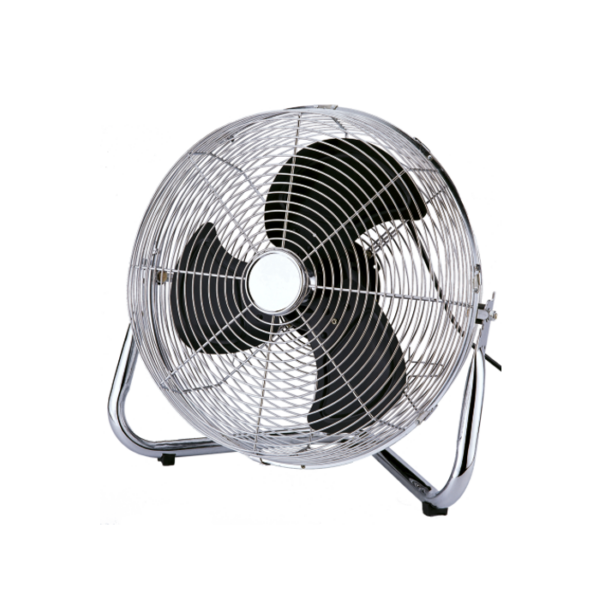

Tornado Fan – HVF Series
HVF Series is specially designed for residential, commercial and industrial ventilation, cooling, indoor air circulation applications, e.g. houses, apartments, shops, churches, gym, offices, restaurants, warehouses and factories, etc.
DESCRIPTION
HVF Series is specially designed for residential, commercial and industrial ventilation, cooling, indoor air circulation applications, e.g. houses, apartments, shops, churches, gym, offices, restaurants, warehouses and factories, etc.
– Wide size range for selection: 12″/300mm, 14″/350mm, 16″/400mm, 18″/450mm, 20″/500mm
– Full metal construction for vibration free and stable operation.
– Wall mountable (optional hanging hooks ).
– High performance and heavy duty motors for powerful air velocity.
– Rolled steel or aluminum blade with well balanced design for smooth and stable operating..
– Adjustable tilt angle.
– 3-speed setting provides low-med-high air flow.
– the best complementary to air-conditioning in indoor air circulation.
SPECIFICATION
| Model No. | Dimension (mm) | Blade Size (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/min) |
|---|---|---|---|---|---|---|---|
| HVF-30X | 395 x 195 x 390 | 300 | 220V~50Hz | High: 85 Medium: 65 Low: 50 | High: 56 Medium: 53 Low: 50 | High: 1350 Medium: 1200 Low: 1050 | High: 55 Medium: 46 Low: 40 |
| HVF-40X | 515 x 230 x 490 | 400 | 220V~50Hz | High: 120 Medium: 100 Low: 80 | High: 58 Medium: 53 Low: 51 | High: 1400 Medium: 1250 Low: 1100 | High: 85 Medium: 66 Low: 52 |
| HVF-45X | 575 x 210 x 560 | 450 | 220V~50Hz | High: 200 Medium: 180 Low: 140 | High: 62 Medium: 56 Low: 53 | High: 1400 Medium: 1250 Low: 1100 | High: 124 Medium: 103 Low: 75 |
