Propeller Fan – IFS Series
IFS Series is designed for residential, commercial and industrial ventilation, cooling, indoor circulation applications in gym, warehouse and factory, stadium, shaded playground, underground/multi-storey car park, shaded train station platform, public transport terminal, lobby, etc.
DESCRIPTION
IFS Series is designed for residential, commercial and industrial ventilation, cooling, indoor circulation applications in gym, warehouse and factory, stadium, shaded playground, underground/multi-storey car park, shaded train station platform, public transport terminal, lobby, etc.
– Size range for different application requirement: 20â€/500mm, 26â€/650mm, 30â€/750mm
– High performance and heavy duty motors with built-in thermal cut-out protection.
– Die-cast iron base
– Oscillating gears protection mechanism (jammed proof) is adopted.
– High grade die-cast aluminum impellers with well balanced design, to give high velocity.
– Adjustable or non-adjustable height for selection.
– Electroplating chrome grilles or epoxy paint grilles for selection.
SPECIFICATION
| Model No. | Dimension (mm) | Blade Size (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/min) |
|---|---|---|---|---|---|---|---|

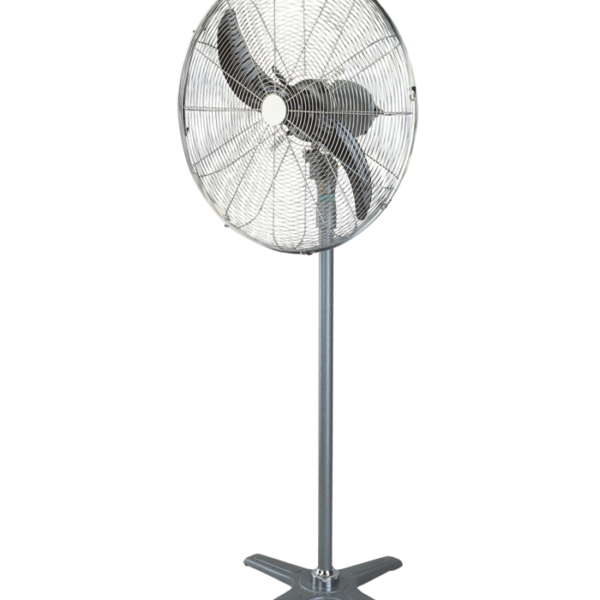

| IFS50M | 570 x 530 x 1270-1720 | 500 | 220V~50Hz | High: 133 Medium: 108 Low: 118 | High: 65 Medium: 60 Low: 53 | High: 1380 Medium: 1060 Low: 835 | High: 145 Medium: 110 Low: 80 |
| IFS65M | 690 x 590 x 1460-1860 | 650 | 220V~50Hz | High: 179 Medium: 143 Low: 135 | High: 68 Medium: 59 Low: 55 | High: 1380 Medium: 1050 Low: 890 | High: 230 Medium: 170 Low: 110 |

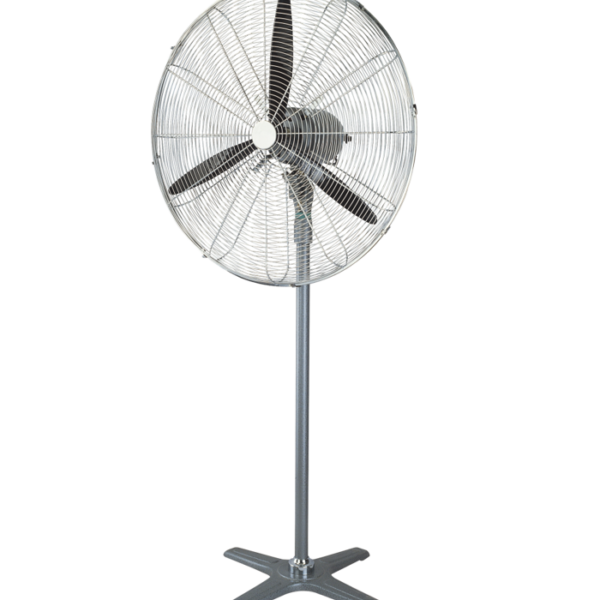

| IFS75M | 800 x 590 x 1515-1986 | 750 | 220V~50Hz | High: 207 Medium: 181 Low: 187 | High: 80 Medium: 76 Low: 68 | High: 1400 Medium: 1200 Low: 920 | High: 300 Medium: 220 Low: 160 |
