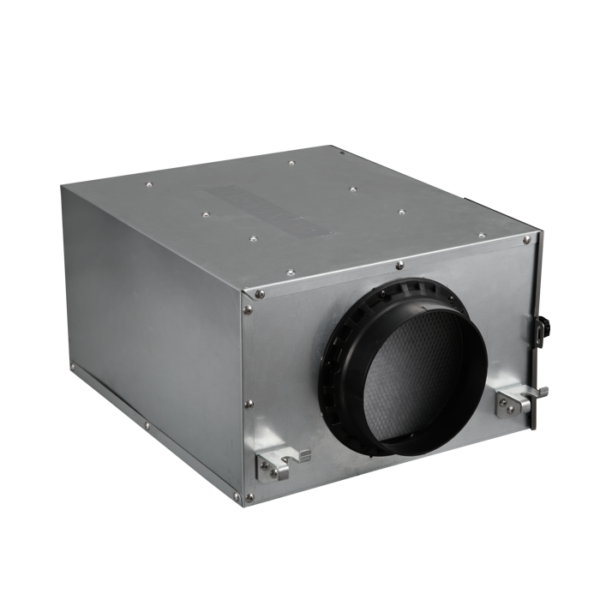

Filtration Fan – HAP350 Series
HAP350 Series is a PM2.5 multi-layered filtration system to purify incoming air before delivery to indoor. It is designed for continuous air exchange to maintain the best indoor air quality all seasonally.
DESCRIPTION
HAP350 Series is a PM2.5 multi-layered filtration system to purify incoming air before delivery to indoor. It is designed for continuous air exchange to maintain the best indoor air quality all seasonally.

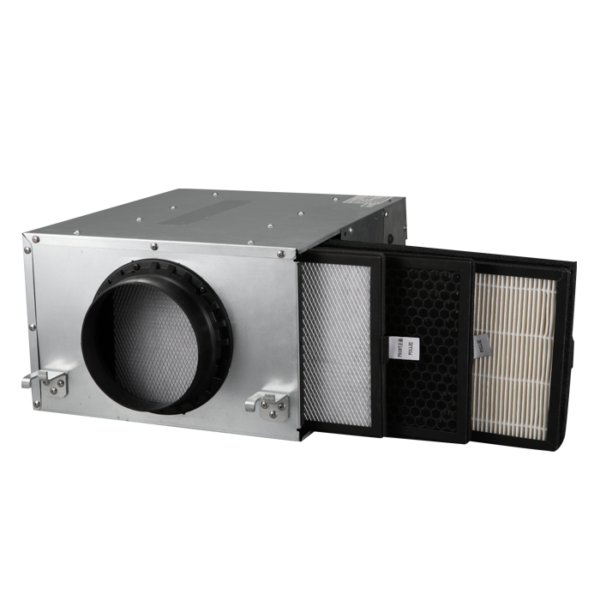

– 3-Step Air Purifying
1. Pre-filter
2. Carbon Filter
3. PM2.5 HEPA Filter
– 2-Speed setting with different air volume and static pressure selection
SPECIFICATION
| Model No. | Dimension (mm) | Applicable Duct ( Ø mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/h) |
|---|---|---|---|---|---|---|---|
| HAP350 | 354 x 486 x 220 | 150 | 220V~50Hz | 42 | <50 | High: 1230 ± 100 Low: 1000 ± 100 | High: 300 ± 30 Low: 200 ± 30 |
