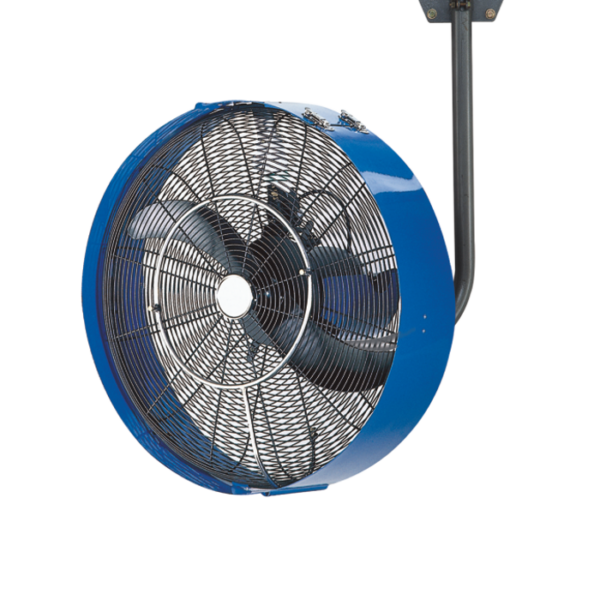

Evaporative Mist Fan – EFW Series
EFW Series is designed for residential, commercial and industrial cooling, air circulation, humidification, dust suppression applications, etc.
DESCRIPTION
EFW Series is designed for residential, commercial and industrial cooling, air circulation, humidification, dust suppression applications, etc.
– Suitable for variety of events including :
1. outdoor and sporting event
2. Pool side, patio or deck
3. Outdoor banquet, entertaining event
4. Hotel, resort, spa, restaurant
5. Special effect for theme parks
6. Dust suppression for construction site and factory
7. Poultry, dairy farm, greenhouse
8. Air-conditioning and turbine pre-cooling.
– Installation: Wall Mount
– Size for selection: 26â€/650mm, 30â€/750mm
– High performance and heavy duty motors with built-in thermal cut-out protection.
– 3-Speed control
– Space-saving detachable / foldable drum
– Super fine mist nozzles for best mist performance
SPECIFICATION
| Model No. | Blade Size (mm) | Voltage | Input Power (W) | Sound Level (dB(A)) | Speed (R.P.M) | Air Volume (m³/min) |
|---|---|---|---|---|---|---|
| EFW-65M | 650 | 220V~50Hz | High: 179 Medium: 143 Low: 135 | High: 68 Medium: 59 Low: 55 | High: 1380 Medium: 1050 Low: 890 | High: 230 Medium: 170 Low: 110 |
| EFW-75M | 750 | 220V~50Hz | High: 207 Medium: 181 Low: 187 | High: 80 Medium: 78 Low: 68 | High: 1400 Medium: 1200 Low: 920 | High: 300 Medium: 220 Low: 160 |
